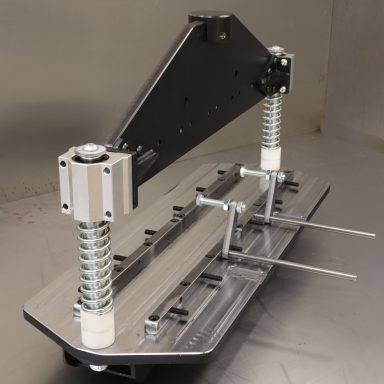

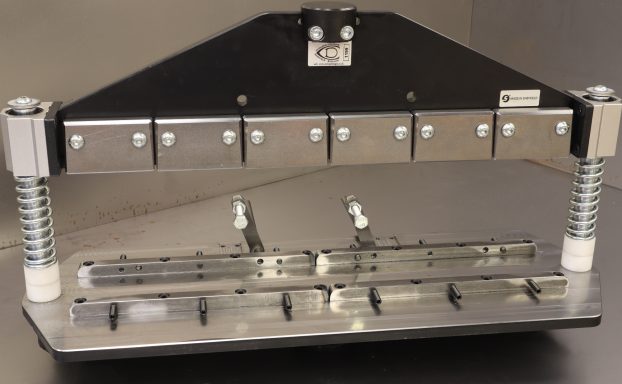

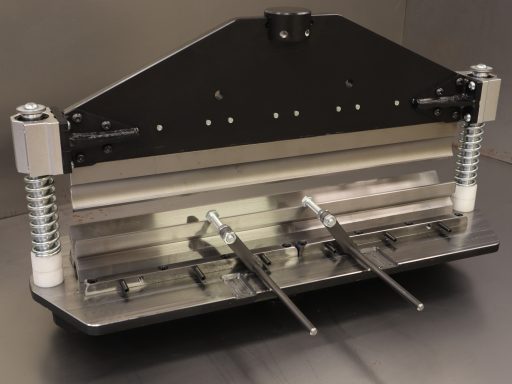

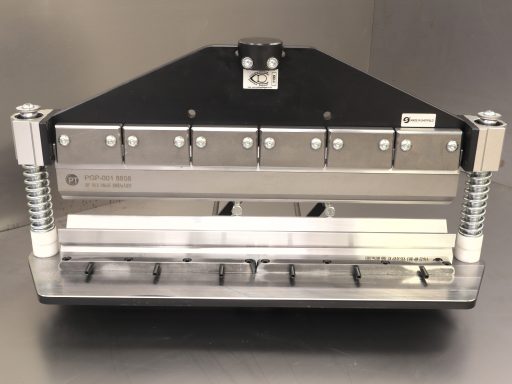

400mm Hydraulic Press Brake Attachment
Standard Model
Versatile. Durable. Workshop-ready.
Upgrade your metalworking setup with our 400mm press brake attachment, offering exceptional strength and precision. Designed and built in Sheffield, England, by Cyclops Designs, this press brake is ideal for small to mid-sized projects, ensuring clean, accurate bends every time.
Key features:
• 400mm bend width – Perfect for a range of fabrication tasks.
• Heavy-duty 15mm beam/base – Webbed for maximum stability and rigidity.
• Adjustable V plates – Enables bending of thicker materials and adjustments to bend radius (10mm min, approx. 35mm max).
• Heat-treated AR400 (Hardox) 15mm x 60mm segmented punch tooling – Includes 150mm, 100mm, 75mm, 50mm & 25mm sections.
• Adjustable back stops (up to 75mm) – Fully removable for open access.
• Runs on linear bearings with spring return – Featuring 25mm diameter guide bars.
• Overall width: 520mm – Weighs 35kg.
Product Options:
1.Bare Unit (No Tooling)
2. Single Piece Tooling
3. Sectional Punch Tooling
Shipping & Delivery

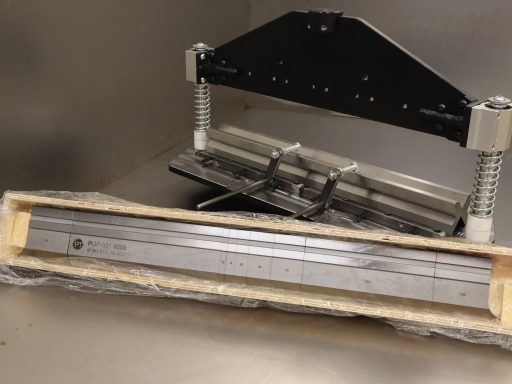

With tooling: Ships via quarter pallet service to prevent transit damage.
Collection available – Message us for a quote for remote locations.
Need more details? Get in touch with us at sales@cyclopsdesigns.com – we’re happy to assist!
Take your metalworking to the next level with our 400mm press brake attachment!
1. Bare Unit (No Tooling)

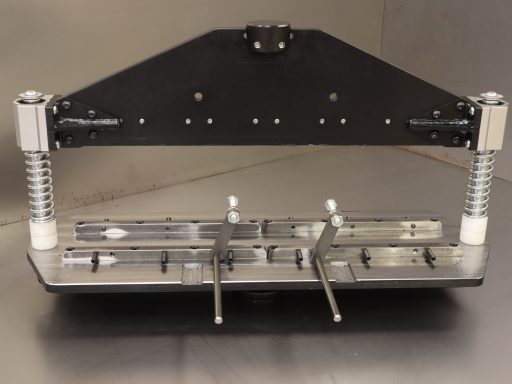

Comes as a bare machine, allowing you to fit your own custom tooling.

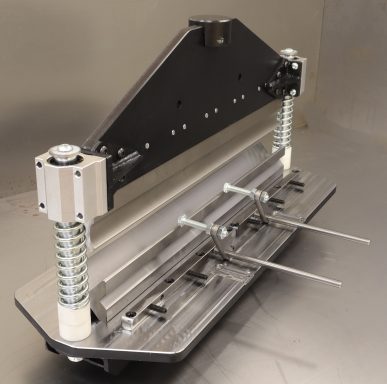

2. Single Piece Tooling includes:
• 610mm punch
• 4-way V die block

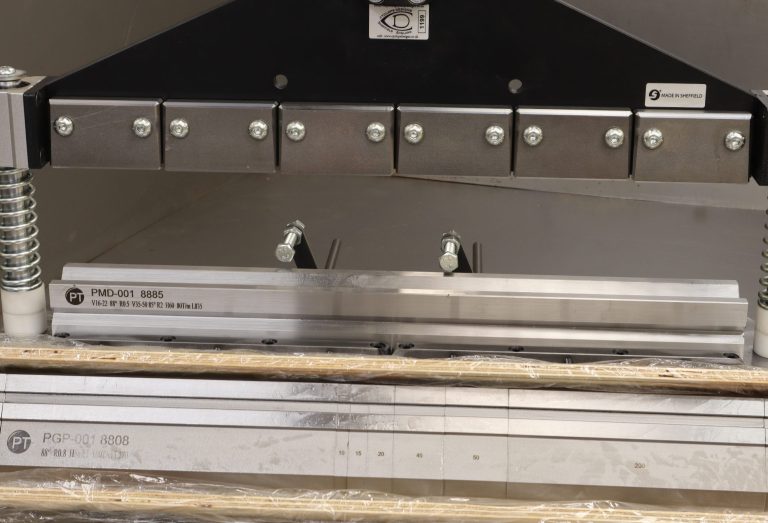

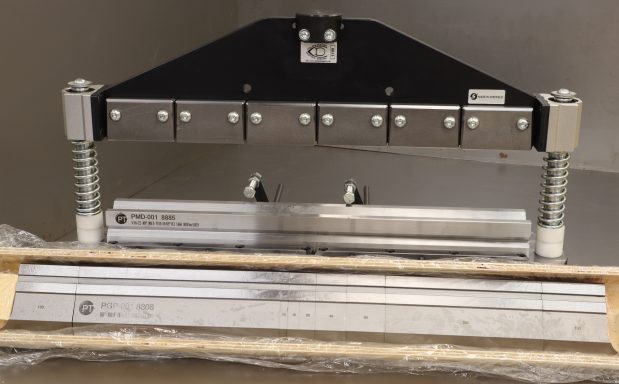

3. Sectional Punch Tooling includes:
• 4-way V die block
• Sectional punches totalling 805mm, with various widths: 2x horned 100mm, 100mm, 370mm, 50mm, 40mm, 20mm, 15mm, 10mm
