Heavy-Duty Ring Roller

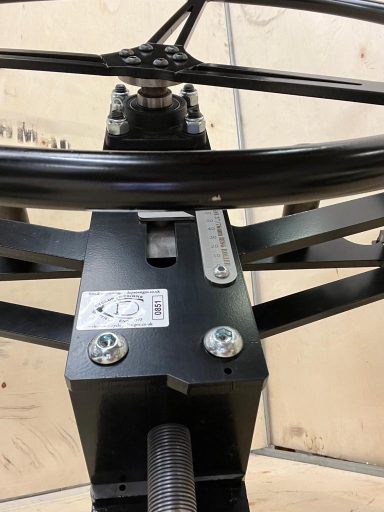

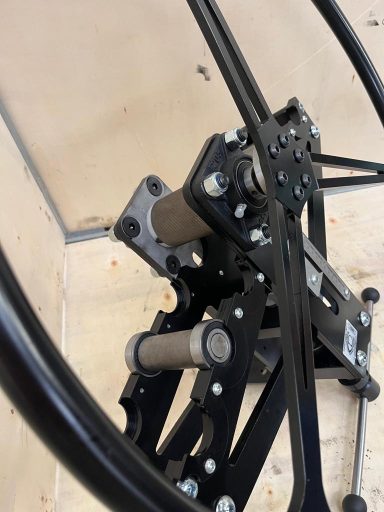

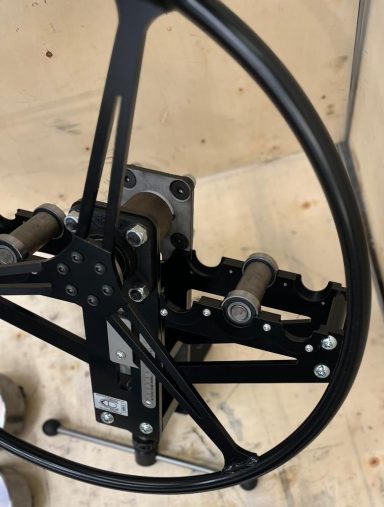

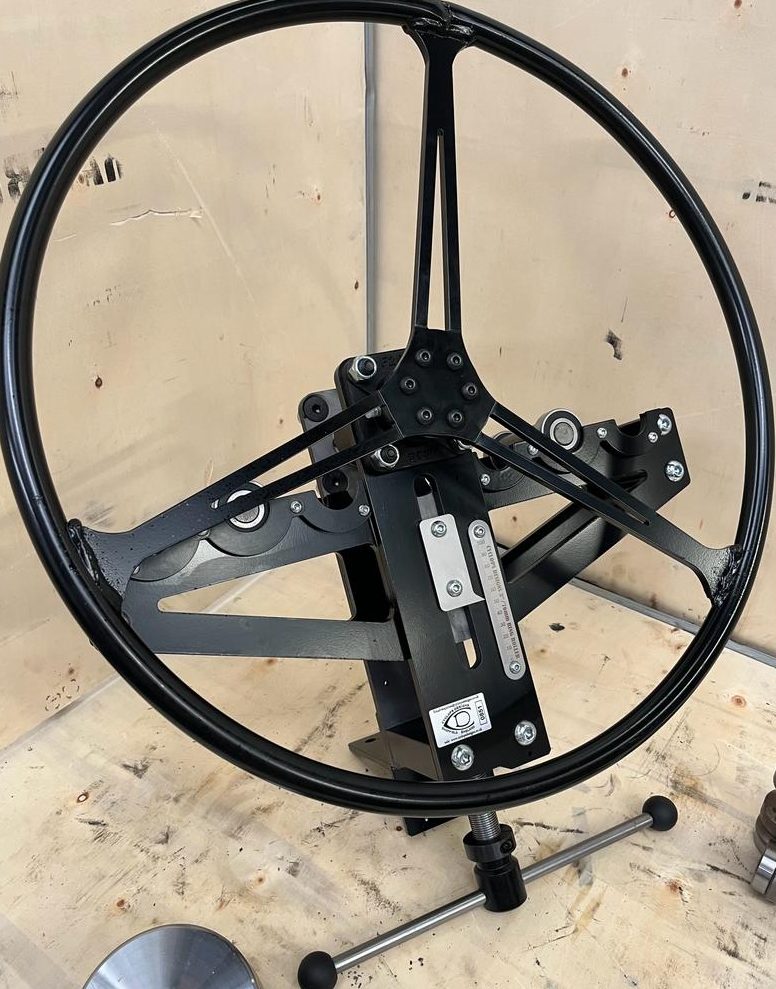

The Cyclops Designs Ring Roller is a heavy-duty, precision-engineered tool designed for effortless metal bending.

Our Ring Roller features a 75mm wide rolling capacity, a laser-cut 10mm steel frame, and case-hardened steel rollers for maximum durability. With a knurled drive roller for superior grip and a quick-change roller system, it ensures smooth, accurate bends with minimal effort.

Perfect for fabricators, metalworkers, and DIY enthusiasts, this ring roller delivers strength, reliability, and precision in every project.

Get yours here!

Buy Now

Key features:

• New & Improved Design – Features a top hat lead screw nut for enhanced strength and reliability.

• 75mm Wide Rolling Capacity – A highly successful design with over 400 units sold and zero returns.

• Precision Machining – Components are crafted to an impressive 0.001" (0.02mm) tolerance.

• Heavy-Duty Steel Frame – Made from laser-cut 10mm thick steel for superior strength and rigidity.

• Case-Hardened Steel Rollers – Ensures durability, with a powder-coated frame for longevity.

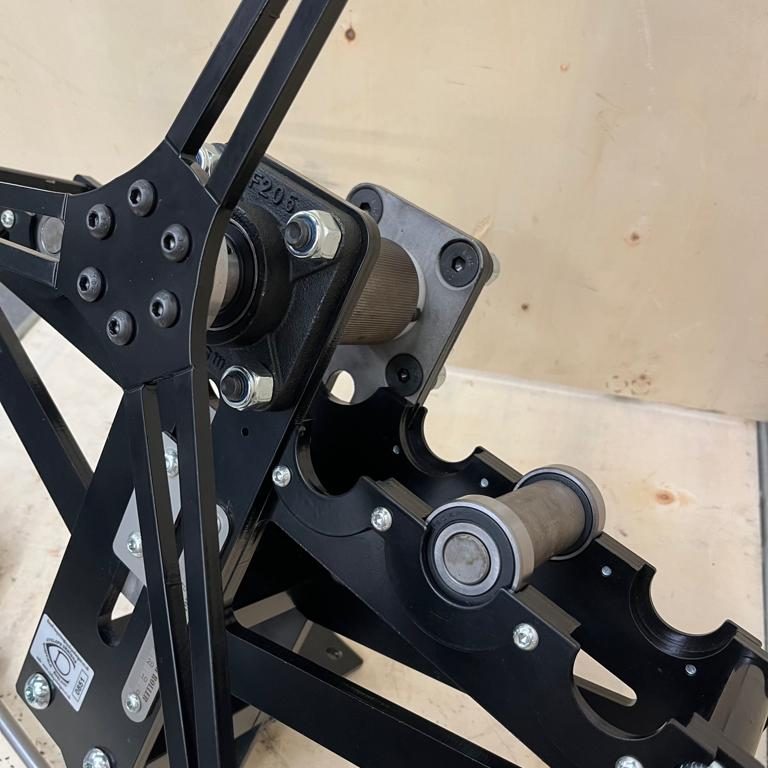

• Knurled Drive Roller – Provides maximum grip on the workpiece, preventing slippage or scale buildup.

• Quick Roller Change System – The main shaft slides out effortlessly to swap rollers or remove a rolled circle.

Max Rolling capacities:

• Flat Bar: 75mm x 10mm (Min Ø 500mm) | 50mm x 10mm (Min Ø 300mm) | 50mm x 10mm on edge (3000mm radius)

• Square Bar: 25mm x 25mm (Min Ø 600mm)

• Round Bar: 25mm (Min Ø 600mm)

• Box Section: 40mm x 40mm x 1.5mm (Min Ø 1200mm) | 30mm x 30mm x 3mm (Min Ø 600mm)

• Round Tube: 42mm OD x 3.2mm wall (Min Ø 800mm) – Requires tube rollers.

Specifications:

• Machine Dimensions (Excluding Handle): 550mm (W) x 350mm (H) x 225mm (D)

• Approximate Weight: 34kg

• Main Shaft: 25.4mm | Secondary Shafts: 20mm

• Included: Bench mount, round handwheel handle, flat dies, and lock ring.

Customisation & accessories:

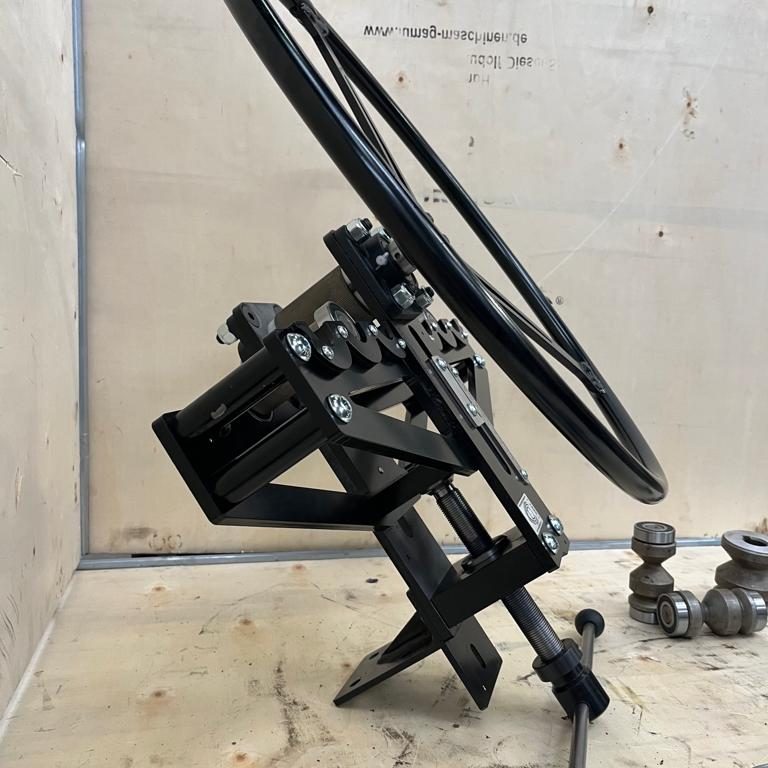

• Additional Dies Sold Separately – Choose from V-groove dies and diameter-specific tube dies.

• Optional Floor Mounting Column – Available separately. Simply bolts onto the bench mount bracket.

• DRO (Digital Readout) option available.

Extra wide 100mm & 150mm models available on request

The bespoke rollers are sold separatelly and not included in the sale price.

Viewing and testing:
In-person viewing and testing are welcome.

For additional information, please get in touch with us at sales@cyclopsdesigns.com.
